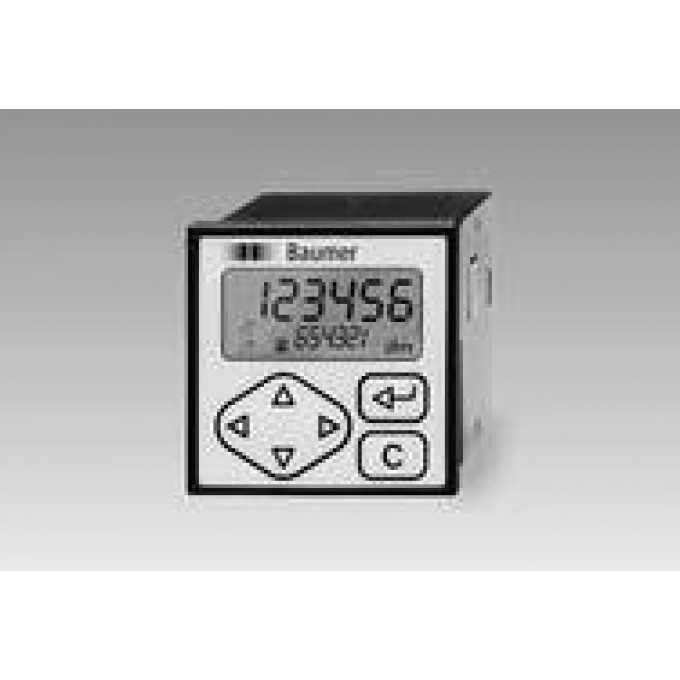

Счетчик BE 134 BAUMER 119630
Артикул: 119630
Цена: по запросу
Есть в наличии
Работаем с 44ФЗ, 223ФЗ, 275ФЗ
Аккредитация на АСТ ГОЗ
Доставка вМосква
Самовывоз из магазина0 руб.
по предварительному заказу
(Москва, Пресненская наб., 12 «Башня Федерация. Москва-Сити», этаж 42)
(Москва, Пресненская наб., 12 «Башня Федерация. Москва-Сити», этаж 42)
Курьером (1-2 рабочих дня)0 руб.
Самовывоз из ПВЗ (1-2 рабочих дня)0 руб.
ХАРАКТЕРИСТИКИ
Гарантия -
12 месяцев
Сертификаты -
CE
Storage temperature -
-20&hellip,+70 °C
Function -
Hour counter Main counter with 2 presets
Display -
LCD, 7-segment display, 2-lines, backlit
Number of digits -
6-digits Totalizer in 2 steps (8-digits)
Digit height -
7 mm (postion value) 4 mm (preset)
Count mode -
Adding or subtracting
Ambient temperature -
0&hellip,+45 °C
Housing type -
Built-in housing
Dimensions W x H x L -
48 x 48 x 100 mm
Mounting -
Clip frame for built-in housing
Weight approx. -
150 g (12-30 VDC/85-265 VAC) 250 g (24/48 VAC)
Materials -
Housing: Makrolon 6485 (PC) Keypad: Polyester
Voltage supply -
24/48 VAC ±10 % (50/60 Hz) 85&hellip,265 VAC (50/60 Hz) 12&hellip,30 VDC
Reset -
Button, electric or automatic
Keylock -
Yes, electric (keylock)
Emitted interference -
DIN EN 61000-6-4
Interference immunity -
DIN EN 61000-6-2
Programmable parameters -
Measuring units, sensor logic Control inputs
Approval -
UL approval / E63076
Relative humidity -
80 % non-condensing
Core cross-section -
1.5 mm
Protection DIN EN 60529 -
IP 65 (face with seal)
Mounting depth -
100 mm
Cutout dimensions -
45 x 45 mm (+0.6)
Power consumption -
5 VA 5 W
Sensor supply -
24/48 VAC: 10-26 VDC/60 mA 85&hellip,265 VAC: 24 VDC ±20 %/100 mA 12&hellip,30 VDC: 9-28 VDC/100 mA
Counting frequency -
Batch counter: approx. 20 Hz
Data memory -
>10 years in EEPROM
Outputs electronic -
Optocoupler
Outputs relay -
Normally open or closed, programmable
Output holding time -
0.01&hellip,99.99 s
Standard DIN EN 61010 1 -
Protection class II Overvoltage category II Pollution degree 2
Connection -
Plug-in screw terminal connector
Operation / keypad -
Membrane with softkeys
Interface -
RS485
Presets -
1 preset 2 presets
Operating mode -
Time meter and hour counter
ОПИСАНИЕ
Счетчик BE 134 Baumer от Baumer — промышленное решение Счетчики, разработанное с учетом требований эксплуатации. Компания Baurussia.ru обеспечивает поставки оборудования, соответствующего международным стандартам
